GPS 2.4G 5.2G 5.8G Gun Drone Signal Jammer DJI Phamton 4 Battery Inside 65w
Descriptions:
UAV drone phone signal jammer SA-NJ004 is the popular jammming device designed in 2019. This gun type drone jammer can be with 3 bands
and 4 bands. This 4 bands UAV drone blocker support GPS, WiFi 2.4G, WiFi 5.2G and WiFi 5.8G with powerful power each band. The distance can be up to 1.5km. We can also customize the frequencies as you need. Such as 2g 3g 4g gps 2.4g 5.8g in one jammer. This UAV signal interference jammer can block all most the drones. Such as DJI Phantom 3 and DJI Phantom 4. This drone jammer is widely used in military, army to protect security. Outdoor waterproof case with protection level of IP55 to use outside. The drone signal jammer SA-NJ04 is built-in battery, it can work about 2 hours with full charge. For the compact size, it is very easy to carry.
Features:
1.Outdoor waterproof case with protection level of IP55
2. Block 2.4g 5.2g 5.8g and GPS
3. Output power 65w, 1.5km long distance
4. Built-in battery, working 2 hours with full charge
5.Batteries are separate from the main device,easy to be replaced and maintained.
Technique characteristics:
1.Taking use of super-high frequency with high effective power.
2.Effective output power (channel power) and bigger interfere radius.
3.Only interfere downlink frequency of mobile system,without disturb normally working
of Base Stations. 4.Imported elements: Slow start up design of circuit. These elements can maintain the stable operation condition with high integration.
Specifications:
| Output Interface | Shield band of frequency (MHz) | RF Output Power(±1w) |
| CH1 | 2.4G | 30w |
| CH2 | GPS L1 | 20w |
| CH3 | 5.8G | 10w |
| CH4 | 5.2G | 5w |
| Power supply: | AC110~220V/DC-48V (option) |
| Total RF Power : | 65W |
| Built-in battery: | DC-24V 8AH/Support 120min Full Power Working (option). |
| Field strength at -80dBm, Shielding area: | 500 ~ 1500m @ according to signal density of mobile network. |
| Power consumption: | 180W |
| Weight: | 6.0Kg |
| Size(length × wind × high): | 960×400×230 mm |
| Humidity: | 30%-95% |
| Running Temperature: | -10 to +55 Celsius Degree |
| Packing: | Box |
Terms and conditions:
| Delivery Time Schedule | Delivery time is 3 days, Delivery will be initiated from date of receipt of confirmed purchase order and advance remittance in our bank. |
| Payment Terms | 100% Before shipment. TT by Bank, Western Union |
| Terms of Delivery | FOB Shenzhen |
| Warranty | 12 months. |
Applications:
Mainly applied to prisons, airports, scientific research centers, detention houses,
interrogation rooms, courthouses, labor camp,all kinds of military important places, etc.
that forbid aerial photography by use of UAVs
Packing Lists:

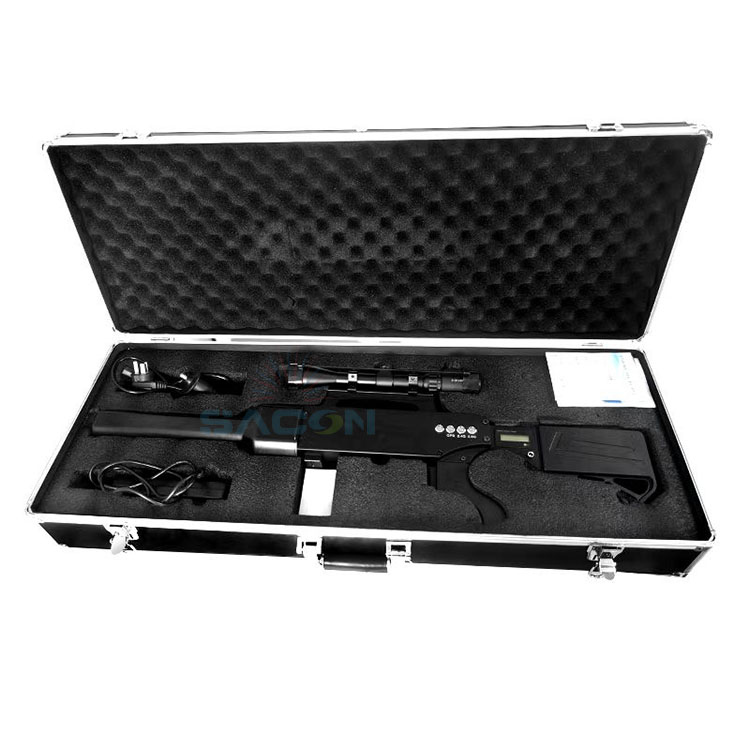

UAV Drone Jammer 1PCS
Box Case 1PCS
Power Adaptor 1PCS
