Bag Type 5G Signal Jammer Blocker 12 Antennas 56w Power Build-in AC power DC12V
Descriptions:

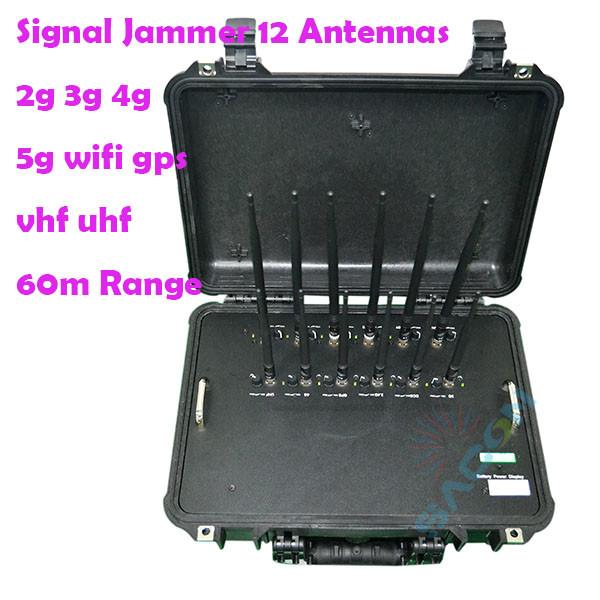

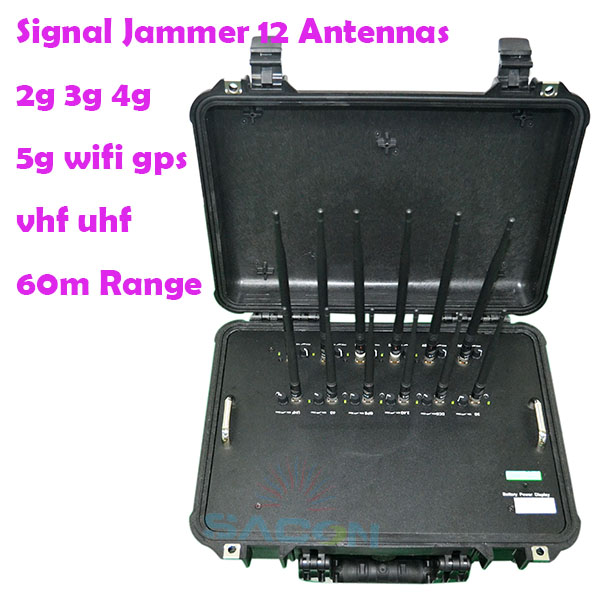

The Suitcase Handheld Jammer SA-BJ12 can block 12 channels frequencies, such as 2g, 3g, 4g, 5g, wifi2.4g, 5.8g, gps, VHF, UHF, Lojack,
315mhz, 433mhz, 868mhz signals. This GPS signal jammer each band is 3-5 watts. Total power is 56w. Jamming distance can reach to 60m.
The power supply of this jammer signal blocker is AC110-240V to DC12V, can be used in car. With 5 cooling fans, this network jammer signal cell phone can work 24/7 hours non-stopped. It is also built-in battery, working 2 hours with full charge. Battery Power and charger stative display via LED screen.
Product Information:
Name: Suitcase Handheld Jammer for 2G/3G/4G Jammer with WIFI UHF VHF Signals ,Build-in Battery
Model: SA-BJ12
Color:Black
Basic Specifications:
Output Power:Total 56W,3-5W each band
Jam Radius:0-60meters, Still depends on the strength signal in given area
Power Supply:AC110-240V to DC12V
Cooling System:High efficiency aluminum alloy radiator+ 5xcooling fans
Working Time:Not-stop Working(Build-in AC power DC12V and Battery 12V26Ah working 2hours)
Product Size:470 x 357 x 176mm(not Include Antenna)
Product Weight: appr.14kg (for OMNI antennas)
Advantage:
1. Output power total 56w, shielding 5-40m,Still depends on the strength signal in given area;
2. You can choose OMNI or Panel directional antennas;
3. Each unit can jam up to12 frequency bands simultaneously, each frequency band is separate and with adjustable power from max to off (0)
4. 5pieces cooling fans, not-stop to work;
5. Build-in AC power DC12V and Battery 12V26Ah continue working 2hours, Battery Power and charger stative display via LED screen;
6. Also working via external DC12V battery;
7. Pelican 1500 suitcase portable design.
Specifications:
| Key specifications Model :SA-BJ12 |
| Channel | Output Port | Frequency range | Average out-putting power |
| 1 | GSM | 925-960MHz | 35dbm / 3W |
| 2 | DCS | 1805-1880MHz | 33dbm /2W |
| 3 | 3G | 2110-2170MHz | 33dbm /2W |
| 4 | 4GLTE | 790-862MHz | 35dbm / 3W |
| 5 | 4G WIMAX | 2500-2690 MHz | 31dbm /1.5W |
| 6 | WIFI2.4G | 2400-2500MHz | 31dbm /1.5W |
| 7 | WIFI5.2G | 5100-5500MHz | 30dbm /1W |
| 8 | WIFI5.8G | 5500-5900MHz | 30dbm /1W |
| 9 | CDMA | 851-894MHz | 35dbm / 3W |
| 10 | GPS | 1570-1580MHz | 33dbm /2W |
| 11 | UHF | 400-470MHz | 35dbm / 3W |
| 12 | VHF | 135-175MHz | 35dbm / 3W |
| Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC12V) Build-in Battery:12V26Ah Working Time:2+Hours External Battery:12V24Ah Working Time:2Hours |
| Dimension: (length,width, height ) 470 x 357 x 176 mm(Not include antenna) |
| Package Size: 570 x450 x 280mm
N.W:11.5kg G.W:=14kg Working temperature: -30~60℃ |
Total power:26W
Shielding radius: (5--60) meters At -75dBm Still depends on the strength signal in given area
Shielding radius of VHF/UHF signal should be lesser than cell phone signal |
| Warranty: one year from delivery date |
| Tripod: length:90-180cm Width:80cm Weight:2kg Carrying capacity:8KG |
OEM Customized Service:
Silkscreen OEM service can be offered.
Application:
It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
Package Contents:
Jammer Host x 1PCS,
Battery Charge x 1PCS,
Antenna x12PCS,
External Battery x1PCS,
AC Plug x1PCS
