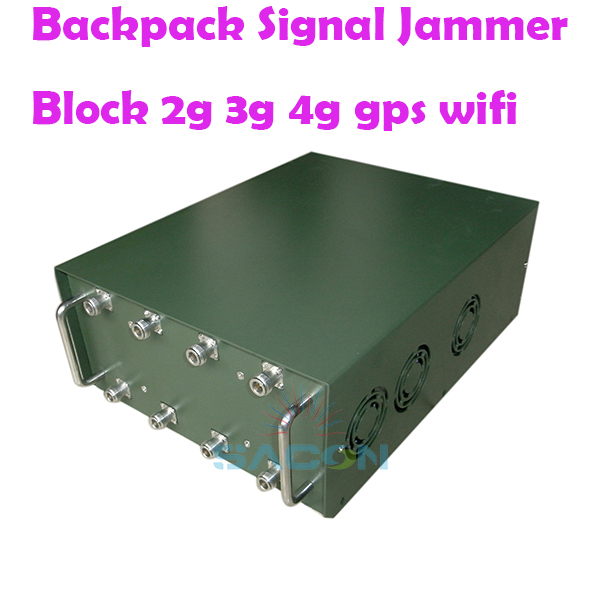

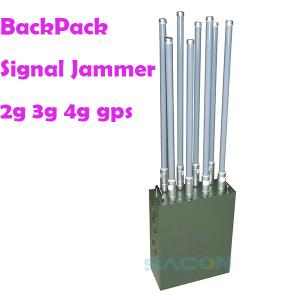

120w Backpack Mobile Phone Signal Jammer 8 Antennas 100m Range Block 2G 3G 4G
Backpack signal jammer.pdf
Descriptions:
Backpack signal jammer SA-BMJ08 can block 2g 3g 4g 5g VHF UHF WiFi GPS etc. signals. The frequencies can be customized. All most countries' frequencies can be done, such as America, Canada, England, Europe, Africa and South America. This backpack signal blocker can be done 6 bands and 8 bands. It is powerful mobile jammer device, each band is 15w, total 120w output power. The jamming distance can be up to 100m. The wight is about 13kgs, it is almost used in military. The manpack signal jammer SA-BMJ08 is built-in battery, it can work 2 hours. It is DC27v. This mobile jammer can also use ac power, it can work 24/7 hours with non stopping.
Features:
1. 8pcs high gain omni antennas;
2. Built-in battery, working 2 hours;
3. 120w output power, 100m long distance;
4. Light weight, about 13kgs;
5. Effective in use for protection of mobile column of personnel on foot or moving in vehicles;
6. Backpack type, easy to carry.
Specifications:
| Total Output Power | 120 Watt |
| Output power | Adjustable could adjust the jamming range |
| Cover Radius | 50-100m(under Signal level ≤-85dBm)@according to the signal density mobile network |
| Jamming type | Sweep Jamming |
| Antenna Type | 5dBi external omni-directional |
| Power Supply | AC adapter (50 to 60Hz/100 to 240V AC –DC27V) |
| Working Time | Not-stop Working(Build-in AC power DC27V and Battery 27V60Ah working 2 hours) |
| Electric Filed (SAR) | Compatible with ICNIRP Standards (Human safe) |
| Operating Temp | -20 to +50℃ |
| Storage Temp | -40 to +60℃ |
| Humidity | 5%-80% |
| Product Dimension(LXWXH) | 380 x 283x 150mm not include antennas |
| Weight | appr.13kg ( not include antennas 7kg and battery about 5kg ) |
America Type frequency for United States, Canada, Mexico ,S. America.
1.2GGSM/CDMA850MHz:850-894MHz;15W
2.2GGSM1900MHz:1920-1990MHz;5W (2GGSM/CDMA/PCS1900MHz)
3.4GLTE700MHz:700-800MHz;15W
4.3G2100MHz:2100-2170MHz;15W(3GUMTS/WCDMA/TD-SCDMA/CDMA)
5. VHF Radio:135-175MHz; 15W
6. UHF Radio:400-470MHz;15W
7. WiFi2.4G: 2400-2500MHz; 15W
8. GPSL1; 15W
Total Output Power: 120W
We could supply customized service by your detail requirements about frequencies setting.
Optional Frequencies:
1.Lojack:173.03MHz
2.CDMA450MHz:430-450MHz/460-470MHz;
3.GPS/GLONASS/GALILEO:L1 L2 L3 L4 L5;
4.Wireless Camera:1.2G ,2.4G,5.8G;
5.Car remote control: 433MHz/315MHz/868MHz;
7. SAT Satellite Phones:1520-1670MHz;
Applications:
Anti-terror units, bomb squads, VIP protection, protection of convoys, Military forces, SWAT teams, police forces, anti-drug units, riot control units.
Packing Lists:
1pcs Signal Jammer
1pcs Battery charger
1pcs manpack bag
8pcs Antenna
