25w 2.4G 5.8G GPS 500m Distance 5kgs Outdoor Drone Signal Jammer Factory Manufacturer
Description of mobile phone signal jammer:

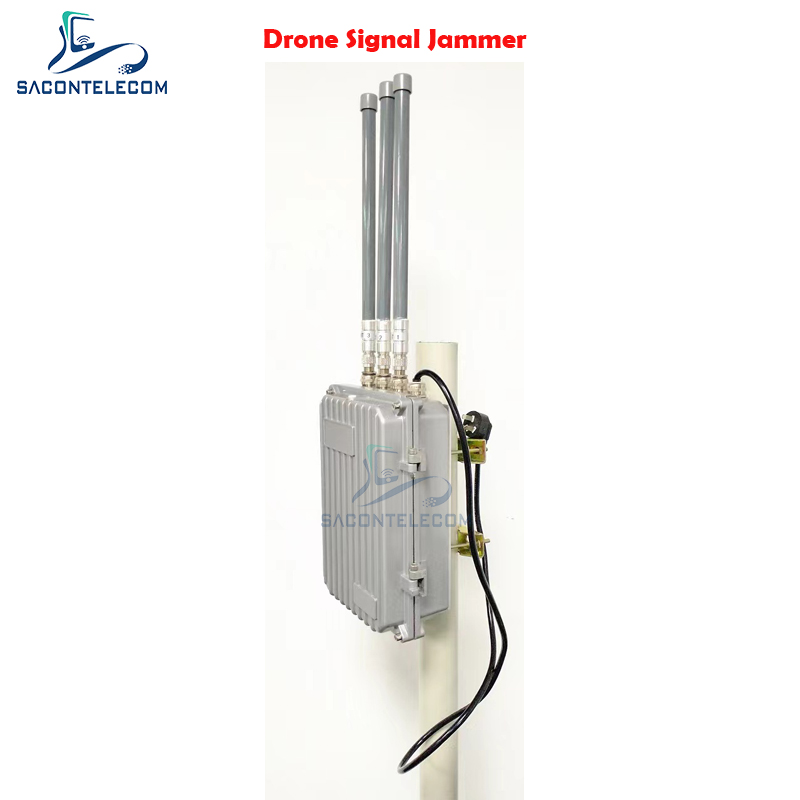

This anti-drone jammer is a waterproof type with alum case and 3pcs FRP omni antennas. Jamming WiFi 2.4G, WiFi 5.8G and GPS L1,
Galieo L1/Glonass L1/Beidou-B1, total 25w output power. Distance is up to 500m radius. Directional antenna is also optional, range can be
up to 800m. This civil drone jammer is only 5kgs, it is very helpful for transportation. Input power supply is 220V, output power supply is DC24V.
24/365 non-stop working is available. It can interfere with the flight of drone by emitting multi-band high-power electrom.
Features of cell phone signal jammer:
1. Alum waterproof case;
2. 3pcs FRP omni antennas;
3. Long distance, up to 500m range;
4. 24 hour 365 days non stop use;
5. Block WiFi 2.4G, WiFi 5.8G and GPS L1,Galieo L1/Glonass L1/Beidou-B1;
6. OEM and ODM is available;
7. Frequencies can be customized;
8. 1 year warranty;
Specifications of prison jammer:
| Product Type | fixed anti-drone device / civil drone jammer |
| Jamming Range | 300-500m(with omnidirectional antennas); 500-800m(with directional antennas,optional) |
| Working Channels | CH1: 2.4G Wi-Fi: 2400-2500MHz------------------------------------------------------------------- 40dBm / 10W; CH2: 5.8G Wi-Fi: 5715-5860MHz------------------------------------------------------------------- 37dBm / 5W; CH3: GNSS(GPS L1/Galieo L1/Glonass L1/Beidou-B1): 1550-1630MHz:--------------- 40dBm / 10W; |
| Total Output Power | 25 W |
| Direction | Omni directional 360 Degree |
Total Power Consumption | 65w |
| Power supply | AC / DC adapter(Input: 220V; Output: 24V 6.2A), 24/365 non-stop working is available |
Intercept Way(Working Principle) | it can interfere with the flight of drone by emitting multi-band high-power electrom |
Main Unit Size | 280*180*90mm (excluding antennas) |
Antenna(L) | 500mm |
| Weight | 5kgs |
Environment temperature | (-40 ～ +55)℃ |
Relative humidity | ≤85 %RH |
Applications of bomb jammer:
Counter Drone Solution Anti Drone System, military base station, police prison system, government key building,
oil depot system, farm feeding system, plant protection, building protection, water protection.
Package Lists of Rcied jammer:
1pcs waterproof drone jammer;
3pcs omni antennas
Product Tags:
|
|
5kgs Outdoor Drone Signal Jammer 25w 2.4G 5.8G WiFi GPS 500m Distance Images
|
