Descriptions:
SA-NJ06 is a directional shield drone jammer, Built-in lithium battery, easy to operate. This UAV drone blocker is possible to control single frequency. The portable drone jammer equipment uses narrow-band interference technology and radio frequency suppression technology to cut off the connection between the drone and the remote control, thus forcing the drone to return home. And after the UAV is under control, the image transmission channel is cut off, and it will not be able to transmit video, aerial photos, or receive any instructions from the ground remote control, so as to achieve the protection of key areas and prevent privacy from being leaked.
Features:
1. Total 135w output power, jamming distance 2.5km to 3km;
2. 5 channels frequency 900mhz, 1.5G, 2.4G, 5.2G and 5.8G;
3. Frequencies and power can be customized;
4. Built-in battery, works 40 mins;
5. Light weight 4.5kgs, easy to carry.
Specifications:
| Channel | Working Frequency | Output power(w) |
| CH1 | 2.4G 2400-2485MHz | 40w |
| CH2 | 5.8G 5725-5850MHz | 50w |
| CH3 | GPSL1, Glonass, BDS | 1550-1620MHz | 10w |
| CH4 | 5.2G 5150-5250MHz | 25w |
| CH5 | 900MHz 860-930MHz | 10w |
| Battery capacity | 24V10A/H |
| Counter ability | return |
| Total Output power | 135W |
| Battery working time | 40 mins |
| Jamming distance | 2.5~3km(Mavica2) |
| Counter angle | 30 degree |
| Working temperature | -20ºC to +55ºC |
| Charging method | 29.4V charging adapter |
| Weight | 4.35kgs |
| Size | 334*223*140mm |
| Functions | State | Drone type | Notices |
| Return | Open 900MHz/2.4G/5.2G/5.8G | Consumer Drones | Point the device at the drone, and the drone will drive away and return to the take-off position |
| Forced landing | Open all 900MHz/1.6G/2.4G/5.2G/5.8G | Consumer Drones | For drones whose own flight control system has no forced landing function, forced landing is not possible |
Applications:
Airports, Public Procuratorate System, Prisons, Detention Centers, Drug Rehabilitation Centers, Secrecy Agencies, Military Forces, Large Competitions Events, concerts, important meetings, government agencies, anti-terrorist fields and other important locations and facilities require air Areas that are kept secret and controlled by drones.
Packing lists:
drone signal jammer
power adapter
alum case

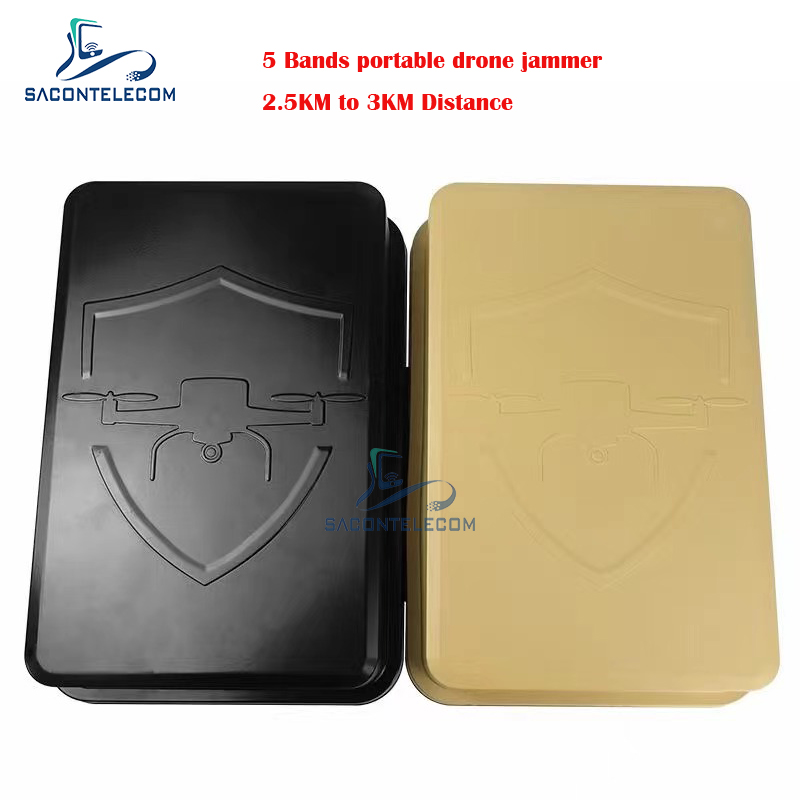

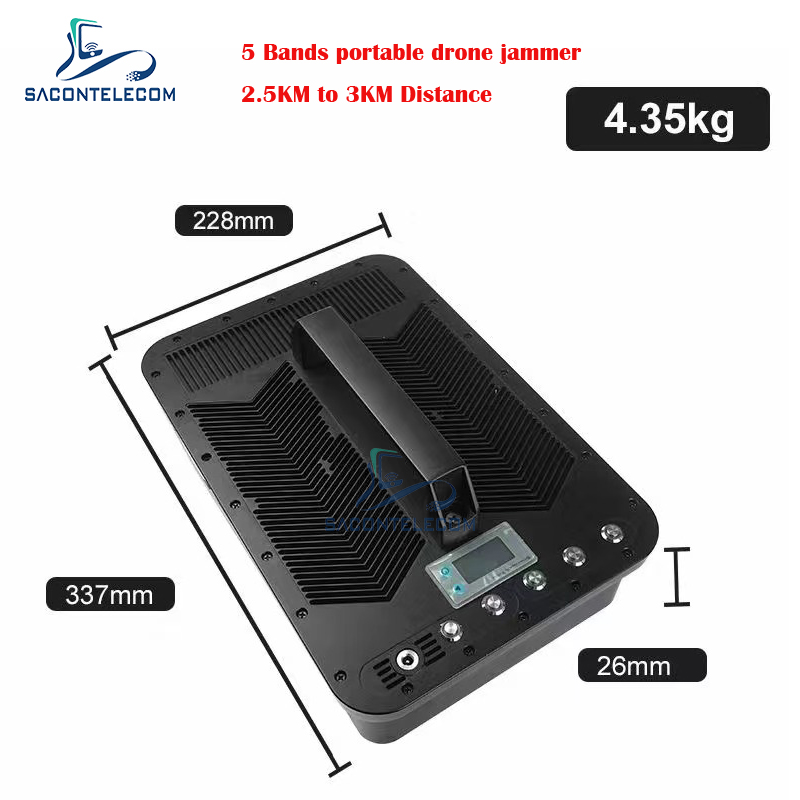

Photos of anti drone jammer:
