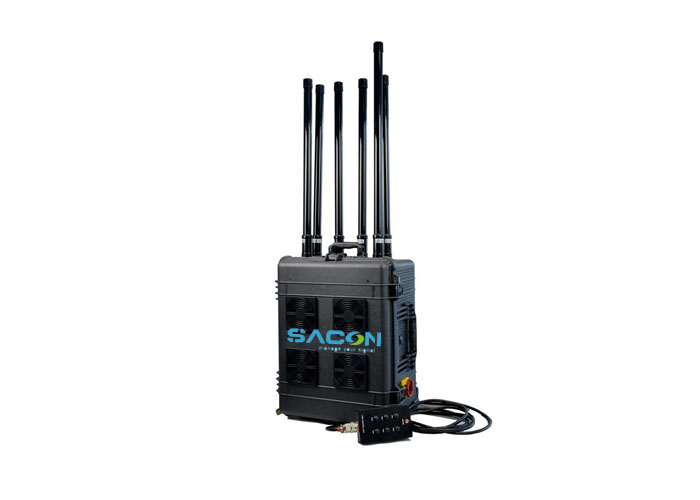

330w High Power Drone Signal Jammer Adjustable With 6 Antennas Up To 1km
Descriptions:
This UAV jammer has 6 antennas, so it can block 6 bands ,like WIFI 2.4G WIFI5.8G GPS and so on,each
frequency band is separate and with adjustable power from Max to OFF
300W outpot power can block 1000m,Up to( Remote Control:400M, GPS:1000M)
100% Safe VSWR over protection for each modula
It is a good choice to block drone.
Features:
| Build-in Battery 27V 56Ah continue working 1.5hours,
| Good cooling system with Heat sink and 30 pcs fans inside
| Separate control of each module, convenient operation.
| With Pelican case 1620
| 100% Safe VSWR over protection for each modular
|50W-100W for each band, 6 band in total.
Advantages:
| Each frequency band is separate and with adjustable power from Max to OFF(0)
| 100% Safe VSWR over protection for each modular
| Good cooling system with Heat sink and 30 pcs fans inside
| with Pelican case 1620 ,carry out ,
| Build-in Battery 27V 56Ah continue working 1.5hours,
| Working status indicator for each band modular.
Technical Parameters:
1:RC868-915MHz 50W
2:RC433MHz 30W,
3:RC2.4G:2400-2500MHz 100W
4:RC5.8G:5725-5850MHz 50W,
5:GPSL1+GLONASS+ BDS - B1:1560-1610MHz 50W,
6:GPSL2L5+GLONASS+ BDS - B2B3:1170-1280MHz 50W,
| Key technical specifications: |
| Channel | Output port | Frequency range | Average out-putting power |
| 1 | Wi-Fi 2.4G | 2400-2500MHz | 50dbm |
| 2 | Wi-Fi 5.8G | 5500-5580MHz | 47dbm |
| 3 | remote control | 433MHz | 44dbm |
| 4 | GPSL1 | 1560-1610MHz | 47dbm |
| 5 | GPSL2+L5 | 1170-1280MHz | 47dbm |
| 6 | remote control | 868 - 915MHz | 47dbm |
| Power supply: AC adapter 50 to 60Hz, (AC110 or 240V-DC27V) Battery:27V 56Ah |
| Dimension: (length, width, height ) 630*500*350mm(Not include antenna) |
| Package Size: 800 x 700 x 600mm
N.W:50kg G.W:50Kg + 6kg antennas =56kg
Working temperature: -30~60℃ |
| Total power:330W
Shielding radius: Remote Control:400M, GPS:1000M
Still depends on the strength signal in given area
Shielding radius of VHF/UHF signal should be lesser than cell phone signal |
| Warranty: one year from delivery date |
Package contents:
1pc Desktop Jammer
1pc AC 110 or 220V DC 12V or 27V 20A power supply
6pcs Antennas Omni 500mm long
Application:
Mainly applied to prisons, airports, scientific research centers, detention houses, interrogation rooms,
courthouses, labor camp, all kinds of military important places, forbid aerial photography by use of drone,
etc
