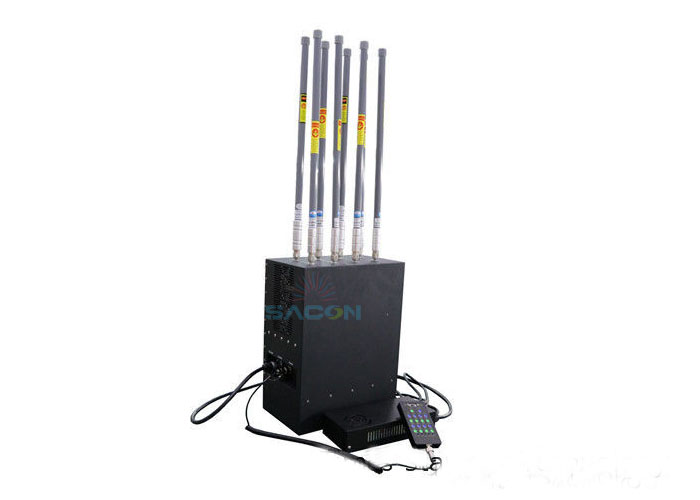

Max 400w Anti Terror Manpack Jammer Block Wireless Camera Frequency
Description:
SA-008M-A specially designed for military RCIED disposal, Briefcase Jammer is a wide-band portable
jamming system, designed for the protection of VIP's and groups of people from radio controlled improvised
explosion by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage
of information through intercepting units during confidential talks. Briefcase Jammer transmits RF
interference and creates a "Radio Frequency Protected Zone" around the object that prevents remote
controlled bomb activation by various RF means in its vicinity with a sufficient jamming safety radius, in
order to save lives and prevent serious injuries. Briefcase Jammers are also deployed to guard forces in the
field, Dignitaries and VIP's, checkpoint and border rossings, roadblocks, Embassies, Police and
Government offices etc. Briefcase Jammer are available in various models as per the frequency and output
power. However these jammers can be customized as per the user requirements.
Advantage
High-power Manpack multi-band RF signal jammer.
Modular construction for easy maintenance, repair and upgrade.
Jam up to eight different jamming modules.
Max 240 watt total RF output power, 30 watts each channel.
Systematic Smart Cooling System.
The high quality of the system meets military requirements.
Frequency bands and output power selectable.
Integrated main equipment, battery, and antennas increases mobility of the device.
Different frequency bands can be controlled independently by different switches.
Local or wire control operation mode can be selected based on actual environment.
AC or DC power supply can be selected.
Power Amplifiers protection design ensures the working reliabity of the device.
Can customize AM, FM, VHF, UHF, 450MHz, iDEN, CDMA, GSM, GPRS, DCS, PCS, AWS, WCDMA, 4G 700, 4G 800, LTE 2300, LTE 2600, GPS, WIFI, WIMAX, etc.
Specification
| Output interface | Description | Shield band of frequency | RF output power( +1dBm) |
| CH1 | LOJACK | 168-178 MHz | 41.7dBm |
| CH2 | WCDMA 3G | 2110-2170 MHz | 41.7dBm |
| CH3 | GSM900 | 925-960 MHz | 41.7dBm |
| CH4 | GSM1800 /PCS 1900 | 1805-1880 MHz /1930-1990 MHz | 41.7dBm |
| CH5 | WIFI, 2.4G | 2400-2485 MHz | 41.7dBm |
| CH6 | LTE800 | 790-821 MHz | 41.7dBm |
| CH7 | GPS L1 | 1570-1580 MHz | 41.7dBm |
| CH8 | LTE 2600 | 2620-2690MHz | 41.7dBm |
| Power supply: AC220V, DC24V |
| Total Output Power: 400Watt |
| Power consumption: 1200Watt |
| Weight: 30Kg Size(length × wind × high): 350×200×470mm |
| Humidity: 30%-95% Running Temperature: -20℃ to +55℃ |
| Jammer Module Number | 8 |
| Cooling System | Systematic Smart Cooling System |
| System Protection | VSWR, Over-voltage |
| Jamming Source | Frequency Scan Technology |
| Antenna Type | High Gain Omni-directional Antennas |
| Number of Antennas | 8 |
| Inside Battery | 24V DC, 2 hours; |
| Jamming range: 20-200m according to signal density of mobile network |
Applications
Prevent remote controlled improvised explosive devices from being activated and stop terrorist attacks;
Protect explosives handling experts;
Protect important places such as bus/train stations, plazas, schools, mass gatherings, stadiums, etc;
Risk mitigation and explosives removal in specified spots;
Police used for VVIP convoy, anti drug, riot control, etc.
Military used for border control, etc.
